Single-pole bimetallic thermostat T250 from China manufacturer - Ningbo Newlite International Trade Co.,Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: BTH-10

Production Capacity: 100000pcs/month

Delivery Date: 25days

Theory: Resistance Sensor

Brand Name: newlite or required

Terminals: 6.3 x 0.8, CuZn Nickel pla...

Electric withstand: <0.5mA at 1500VAC/60 sec...

Means of Transport: Ocean,Land,Air

Packing: Standard packing

Output: Analog Sensor

Usage: Temperature Sensor

RATING: 16A 250V , 15A 125V

Number of cycles: >100000 with rated current

Leakage current: Max 0.5mA

BTH-10
1.RATING:16A 250V , 15A 125V
2.OPERATING TEMP: 250±15
3..Close and Open temperature on Minimum and Hi-Position: 6±4K ÷ 55oC±4K
4.Differ:8K

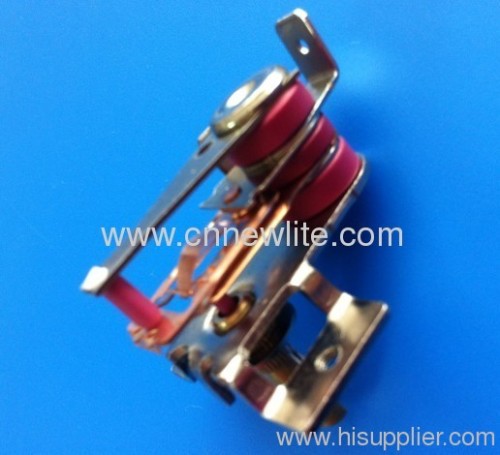

Single-pole bimetallic thermoregulator with snap-action contact
Contact system: Self cleaning function

Max ambient temperature: T250

Terminals: 6.3 x 0.8, CuZn Nickel plated
Number of cycles: >100000 with rated current
Close and Open temperature on Minimum and Hi-Position : 6±4K ÷ 55^oC±4K
Electric withstand : <0.5mA at 1500VAC/60 sec.
Leakage current: Max 0.5mA

Single-pole bimetallic thermoregulator with snap-action contact
